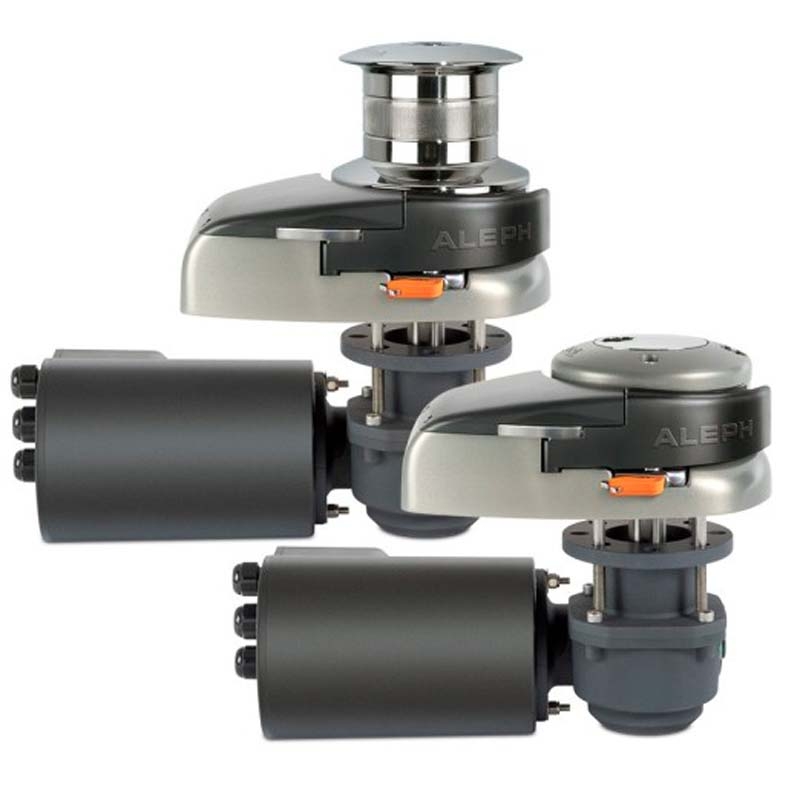

Windlass Quick Aleph AL3 1000 W 12 V · with drum

Windlass Quick Aleph AL3 1000 W 12 V · with drum. Included gypsy: 8/10 mm — 119901. Replacement relay box: 119025. Protection per catalogue: 140798 · 80 A. Supplier title states 10 mm, while its description and catalogue state standard 8 mm DIN 766. Confirm the installed gypsy and standard before buying chain.

2.017,68€ 1.487,54€

VAT included

Special offer

To buy

Preparation: 1 to 3 days

Share this product in social networks:

Shipping costs

Detailed description

Windlass Quick Aleph AL3 1000 W 12 V · with drum
Vertical rope and chain windlass with anodised aluminium base and gearbox, IP67 motor, manual free fall, emergency manual retrieval and inspection cover. Magnet and sensor for a chain counter. Relay box and aluminium handle included; the relay reference below is a replacement. Check voltage, drum version and chain compatibility before purchase. Request alternative gypsy when ordering.
Maximum pull: Maximum working load: 370 kgWorking load: 120 kgCurrent: 140A.Maximum speed: 39,6 m/minLoaded speed: 20,4 m/minWeight: 18,9 kgIndicative boat length: 10-14 mIncluded gypsy: 8/10 mm — 119901Motor: IP67Replacement relay box: 119025Protection per catalogue: 140798 · 80 A
Supplier title states 10 mm, while its description and catalogue state standard 8 mm DIN 766. Confirm the installed gypsy and standard before buying chain.Ref. 119901
