Detailed description

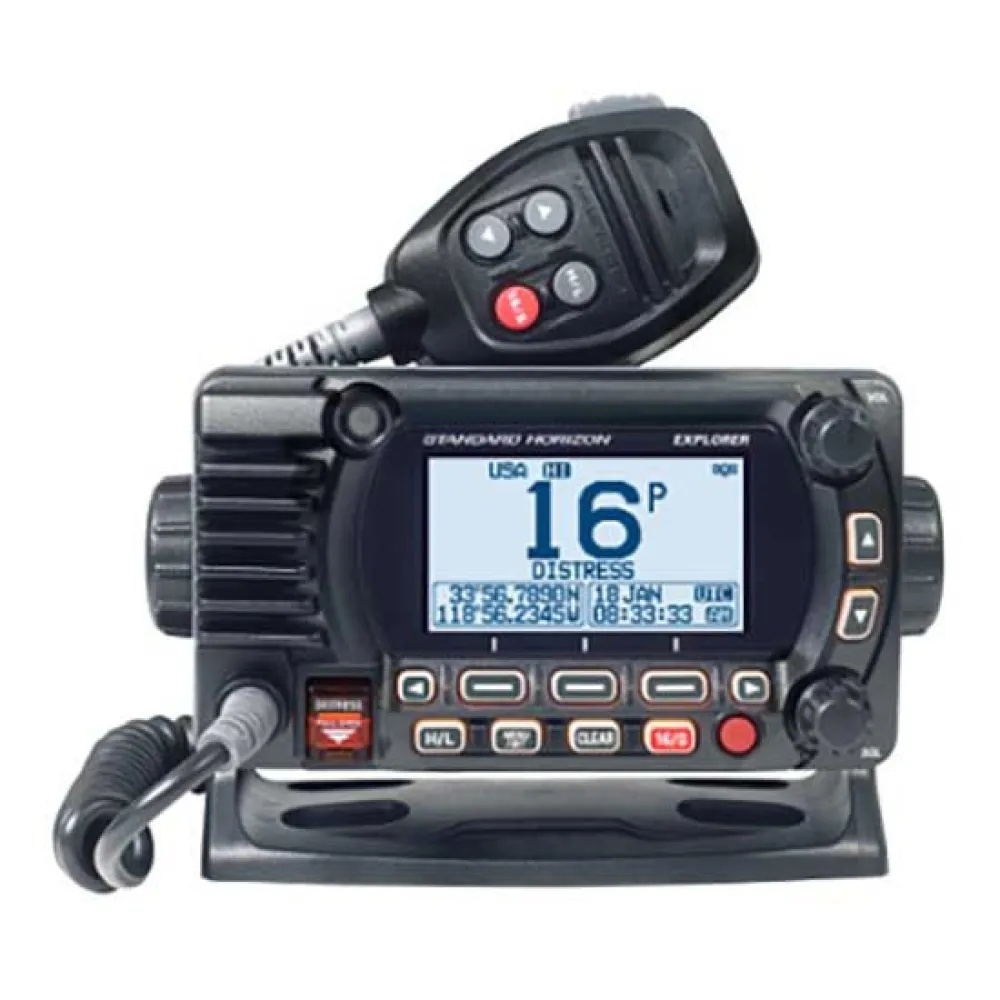

Standard Horizon GX1850 VHF Radio with GPS, DSC, and NMEA 2000. This fixed VHF radio features a built-in 66-channel Class D GPS and a second station option. It includes NMEA 0183 and NMEA 2000 input and output, a large LCD display, and IPX8 waterproofing. It offers international channels and dual watch functionality. The handset allows selection of channels 16 and 9.

The Standard Horizon GX1850 VHF radio has a built-in 66-channel GPS integrated into the front panel, DSC calling, position sharing, navigation waypoints, navigation to a single DSC distress call, and easy installation.

Its NMEA 2000 connection is easy to use, allowing for plug-and-play GPS data and DSC calling between compatible devices with a single interface.

The Standard Horizon GX-1850 features an ultra-compact design, only 3.5 inches deep, nearly 50% shallower than other fixed VHF radios on the market. The WAAS GPS receiver and antenna are integrated into the front panel, providing flexibility for mounting in tight spaces.

The Standard Horizon GX-1850 can input and store up to 100 Waypoints. These waypoints can be selected and navigated to.

The Standard Horizon GX-1850 is an ITU-R M493 Class D VHF radio with a separate receiver dedicated to channel 70. It allows DSC call reception even while transmitting. When the DSC distress function is activated, it transmits a digital MAYDAY message that includes vessel ID, latitude/longitude, and time (when connected to a GPS) for a rapid response. You can easily share position information with other DSC-equipped vessels using the position request and notification functions. With just the push of a button, you can... Request the position of another vessel or simply send your position to the vessel that has selected you. The GPS position of a DSC distress call or position request can be displayed on a compatible GPS connected to the NMEA port. Additionally, the GX-1850 can be configured to automatically scan the GPS position of up to 4 stations.

Standard Horizon GX1850 VHF Radio Features:

Approval Number: 54.0156
ITU-R M.493-14 Class D International DSC (Digital Selective Calling)
GPS data input and output to NMEA 0183 compatible devices
NMEA 2000 compatible
Built-in 66-channel internal GPS receiver
Automatic DSC tracking of up to 6 vessel GPS positions
Automatic DSC channel selection & DSC test call
GPS compass page, waypoint entry and recording, navigation routes to locations
Automatic messaging Distress, report, and MOB location; navigation to MOB location
Large display screen, easy mounting, IPX8 submersible (5 feet or 1.5 meters for 30 minutes)
Noise-canceling microphone with channel switching, 16/S and H/L keypad buttons
Second station and remote access intercom via RAM4 microphone for SSM-70H
ATIS mode for use on inland waterways in Europe.

Dimensions (W x H x D): 150 x 85 x 82 mm
Flush mount dimensions (W x H x D): 138 x 73 x 95 mm
RF output power: 25W (High) and 1W (Low)
Power supply: 11V to 16.5V
Includes Standard Horizon GX1850 VHF Radio:
GX1850 VHF radio with desktop stand.
Handset with clip.
Cable Power supply.
Manual and documentation.
Approval Number: 54.0156
