FIXED VHF IC-M510E EVO ICOM 25W NMEA 2000 IP68 WITH AIS

Detailed description

The IC-M510E VHF marine transceiver allows you to:

Use the RS-M500 app (for iOS™/Android™) to remotely control the IC-M510E smart device via WLAN. Up to three smart devices can be used as a wireless microphone or remote control instead of a single microphone.

Intercom functionality between your smart device and the radio is also available.

The IC-M510E* can display real-time AIS vessel traffic information on the screen. You can directly make individual DSC calls to selected AIS targets from the AIS display.

*The AIS receiver is not included depending on the transceiver version.

The color TFT LCD screen provides a nearly 180-degree viewing angle. The large display features high-resolution characters and function icons. The night mode display ensures good readability in low-light conditions.

The IC-M510E is slim (depth: 53.6 mm) and easy to install on your vessel. Its sleek new design is suitable for panel or trunnion mounting.

The Navigation function guides you to a specific waypoint or AIS target. You can assign up to 100 destinations as waypoints.

The IC-M510E's internal speaker enhances received audio. The waterproof speaker delivers superior sound quality with a wide frequency range for clear and powerful audio.

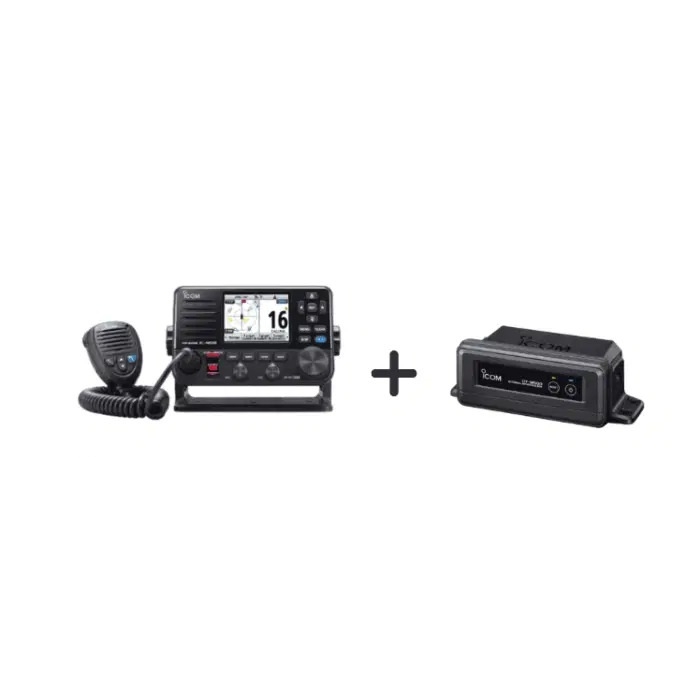

The optional CT-M500 Wireless Interface Box provides NMEA 2000™ connectivity and two-way PA functionality. The CT-M500 and the radio can be connected via WLAN. This separate interface box option allows for flexibility by positioning the unit closer to the NMEA network connection point.

The IC-M510 is a 2022 iF DESIGN AWARD winner, a world-renowned design award. The IC-M510 VHF marine radio provides essential maritime communication and supports safety at water. Integration with the newly developed RS-M500 smart device app also enables an unparalleled onboard communication experience.

This device also features:

Active noise cancellation.
NMEA 0183/HS and NMEA 2000™ connectivity (CT-M500 required).
An integrated GNSS receiver (selectable from the internal receiver or using the optional UX-241 GNSS antenna).
Advanced IP68 waterproofing (1 m water depth for 60 minutes).
An automatic foghorn function (CT-M500 required).
A voice encoder with optional UT-112A.
AquaQuake™ prevents audio degradation from a submerged speaker.

A supplied HM-205RB speaker-microphone can be attached to the rear panel. An external speaker connection, controlled with the COMMANDMIC™ HM-195 or HM-229 series.

Supports 4-digit channels.
A view of the rear panel.
