Detailed description

• • Body & nut: Made of glass reinforced PA
  • Washer: Made of PA
  • Tested according to ISO 9093 standard
  • Available in white colour
  • Thread Ø (A) according to BSP thread dimensions

  Installation Instructions:

  • All types of standard bedding compounds and epoxy or polyester resins can be used for the installation.
  • Mark the position inside and outside the hull. Drill the clearance hole into the hull. Apply the bedding compound to the underside of the flange. Do not cover the thread area. Insert the thru-hull's body from the outside. From the inside, place the washer and the screw nut to tighten. The skin fitting should be installed in a position where it is protected from impact damage.
  • Tighten the nut to a maximum 20Nm of torque.

  • 		1 ¼’”1 ½”1”2”3/4”	1925323851	1071208897	4752627590	45525365	-4530745309
    Code	Title	Thread Ø A (inch)	Hose Ø B (mm)	Overall Length C (mm)	Flush Flange Ø D (mm)	Thread Length Ε (mm)	Optional Plug

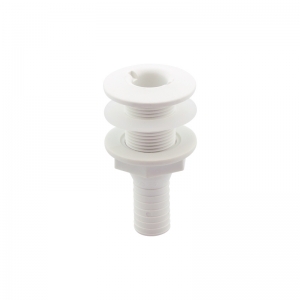

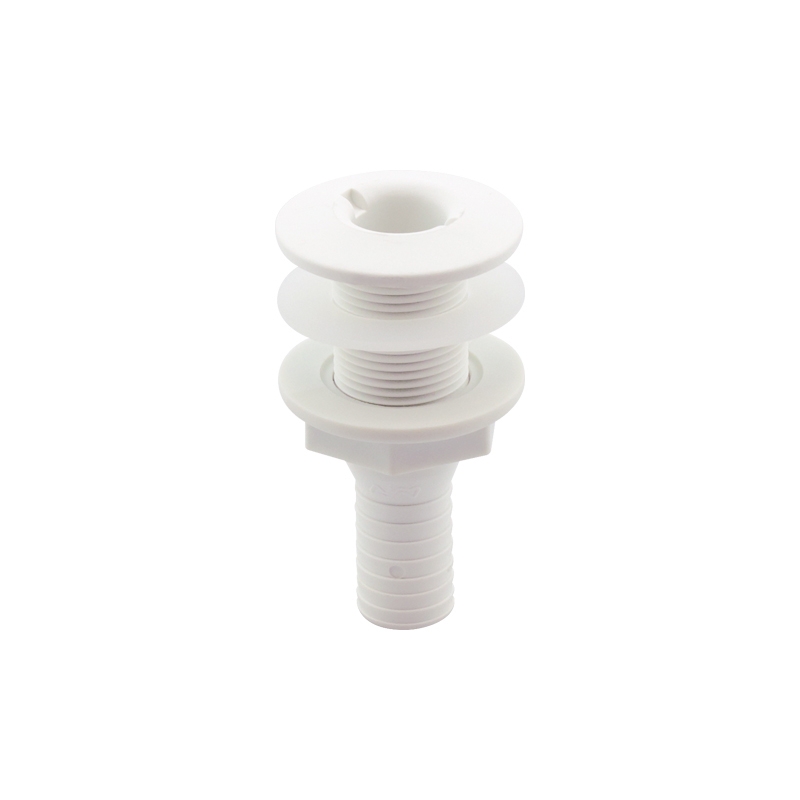

    198225	Thru-Hull Fitting 3/4'', w/Hose Barb Ø19mm & Washer, White, ISO	3/4”	19	88	47	45	-
    198226	Thru-Hull Fitting 1'', w/Hose Barb Ø25mm & Washer, White, ISO	1”	25	97	52	52	45309
    198228	Thru-Hull Fitting 1 1/4'', w/Hose Barb Ø32mm & Washer, White, ISO	1 ¼’”	32	107	62	53	-
    198229	Thru-Hull Fitting 1 1/2'', w/Hose Barb Ø38mm & Washer, White, ISO	1 ½”	38	107	75	53	45307
    198231	Thru-Hull Fitting 2'', w/Hose Barb Ø51mm & Washer, White, ISO	2”	51	120	90	65	-
