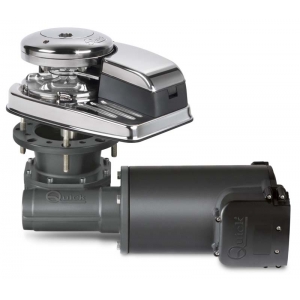

Quick Dylan DR4 windlass 1500 W · 12 V · 10 mm without drum

Electric rope and chain windlass, 1500 W · 12 V · 10 mm, without drum. Reference 119908.

2.822,33€ 2.080,77€

VAT included

Special offer

To buy

Available: dispatch in: 24–48 h

Share this product in social networks:

Shipping costs

Detailed description

Quick Dylan DR4 electric windlass, 1500 W, 12 V, without drum. 10 mm gypsy specified by Pronautic for reference 119908. Check chain diameter, standard and calibration before ordering. AISI 316 stainless steel and hard anodised aluminium base and anodised aluminium gearbox. Single rope and chain gypsy with rope guide. Magnet and sensor for a chain counter included (counter not included). Manual free fall, manual emergency recovery and chain inspection cover. Relay box and aluminium handle included. Catalogue weight: 23.7 kg. Select the correct voltage, power, chain gypsy and drum configuration.
Motor: IP67. Maximum pull: 1100 kg. Maximum working load: 400 kg. Working load: 135 kg. Maximum retrieval speed: 35.2 m/min. Loaded retrieval speed: 19 m/min. Suggested boat length: 10–16 m.
