Navigation and fishing on one display: Garmin ECHOMAP UHD2 52cv

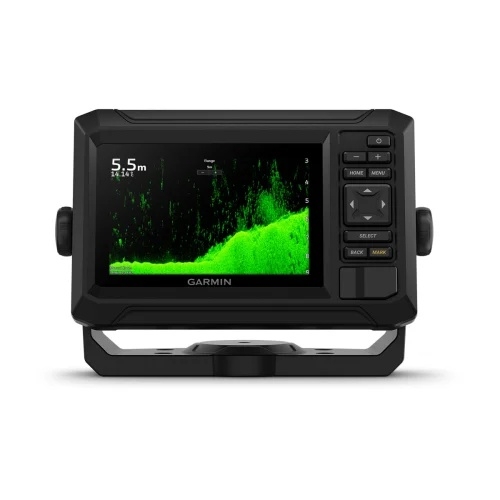

The Garmin ECHOMAP UHD2 52cv combines a GPS chartplotter and fishing sonar in a unit designed to show your position, save useful spots and study underwater terrain on the same trip. Navigation and sonar views can be arranged together, helping you relate returns to the position at which they were recorded. It suits fishing boats that need clear information when exploring a mark, repeating a productive drift or returning to a saved waypoint.
Display and controls
The 5-inch colour display presents mapping and sonar returns together. Keypad operation. Combination views help you compare navigation with bottom information, while high-contrast colour palettes make targets and structures easier to distinguish. The exact resolution and unit dimensions are listed below so you can check the available console space before choosing the installation position.
Sonar for understanding the bottom
Traditional CHIRP sonar shows the water column and helps separate fish from other returns. ClearVü provides a scanning view beneath the boat, useful for reading rocks, vegetation and changes in the bottom. Available images depend on the installed transducer: unit compatibility does not mean every sensor or sonar mode is included with this part number. Actual performance depends on depth, salinity, operating frequency and installation.
GPS, charts and Quickdraw
The built-in GPS receiver provides position information and lets you save waypoints for a return to fishing spots. You can plan routes and keep tracks of your trips. Quickdraw Contours creates contour maps from your own passes when a compatible depth source is connected. This version has a worldwide basemap; detailed Garmin Navionics+ or Garmin Navionics Vision+ charts are sold separately. Chart functions and updates depend on the selected coverage and subscription. Auto Guidance+, where supported with suitable charts, is a planning aid and requires the route and actual conditions to be checked.
Onboard connections
Built-in Wi-Fi connects to ActiveCaptain on a compatible phone for software updates and access to Quickdraw Community information. Connections to compatible ECHOMAP units allow information such as waypoints, routes and sonar images to be shared, subject to Garmin's supported combinations.
Version and transducer
The included GT20-TM transducer provides dual-frequency traditional sonar and ClearVü scanning. It allows fish and depth to be viewed on traditional sonar and compared with a scanning view of the bottom. It is supplied for transom mounting. SideVü is not included.
Technical specifications
| Garmin part number |
010-02589-01 |
|---|
| EAN |
0753759284565 |
|---|
| Nominal display size |
5″ |
|---|
| Display technology |
WVGA, IPS |
|---|
| Resolution |
800 x 480 |
|---|
| Unit dimensions |
18,8 x 12,2 x 6,2 cm |
|---|
| Unit weight |
0,5 kg |
|---|
| Water rating |
IPX7 |
|---|
| GPS receiver |
|
|---|
| Power input |
9–18 V DC |
|---|
| Unit sonar output |
500 W |
|---|
| Memory |
1 microSD · 32 GB max. |
|---|
| Waypoints |
5000 |
|---|
| Track points |
50 000 |
|---|
| Saved tracks |
50 |
|---|
| Routes |
100 |
|---|
| Controls |
Keypad operation |
|---|
| Estimated shipping weight including packaging |
≈ 3 kg |
|---|
In the box
- Garmin ECHOMAP UHD2 52cv
- GT20-TM
- Power/data cable
- Tilt mount
- Flush-mount bracket
- Mounting hardware
- Documentation
