Detailed description

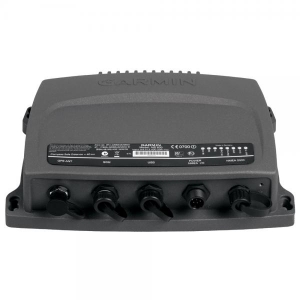

♦ The AIS 800 transceiver helps to avoid collisions thanks to the possibility of tracking and contacting any vessel in the area through an MMSI number, being able to share information between vessels to improve safety and increase confidentiality at sea. The AIS 800 also uses ClearTrackTM technology, which ensures that the AIS traffic position is not interrupted while using the VHF radio. In addition, the AIS 600 is integrated with a Garmin plotter and a VHF radio using NMEA 2000, which offers the ability to initiate a call to any MMSI target directly from the plotter, by selecting the "radio call" function .

Simplified installation to the fullest

♦ The AIS 800 is NMEA 2000 certified and can easily be added to the existing Garmin Marine Network. Once installed, the AIS 600 is controlled by the plotter screen. You will have all the information you need at your fingertips, to make decisions with confidence. In addition, the AIS 600 includes an integrated active splitter that allows a VHF antenna to serve both the AIS 600 and any VHF radio, with minimal signal loss.

Specifications:

♦ Unit dimensions, W x H x D: 9.8 "x 7.1" x 2.5 "(24.9 x 18 x 6.4 cm)

♦ Weight: 1.9 kg

♦ Temperature range: -4 ° F to 140 ° F (-20 ° C to 60 ° C)

♦ Water resistance: IPX7

♦ Operating voltage: 9.6–31.2 V DC (boat battery 12 V DC or 24 V DC)

♦ Consumption: 2 A max. –6 A max. (low power transmission – high power)

♦ Antenna connector: S0-239 (50 Ω)

♦ Maximum antenna gain: 9 dB

♦ Maximum port impedance: 50 Ω

♦ NMEA 2000 electricity consumption: LEN = 2

The box contains:

 AIS 800

 GPS antenna GA 30 with pole and surface mount

 Power cord

 Security Message Cable (SRM)

 NMEA 2000 cable (2 m)

 VHF interconnect cable (1.2 m)

 Mounting components

 NMEA 2000 T-connector

 USB Cable

 CD with software / PC

 Documentation

Compatible devices:

 GPSmap 4008 - 4010 - 4012

 GPSmap 421 / 421s

 GPSmap 5008 - 5012 - 5015

 GPSmap 521 / 521s

 GPSmap 526 / 526s

 GPSmap 6008 - 6012 - 7012 - 7015

 GPSmap 720 / 720s
